February 10, 2020
Soldering
Before turning on the soldering iron, take the sponge from underneath it and red it down so you can use it to clean the tip of the soldering iron and open a window to let out some of the fumes.
After you are done soldering, if there is no one directly in line behind you, turn of the soldering iron
Current and Power
Setting up a multimeter: Before using the multimeter to measure current, you have to make sure to reconnect the red wire to the input with the “A” above it (lower left side)
Lowest Resistance Resistor:
Measured:
Calculated: Current measured at .20 amps when using a 470Ω resistor

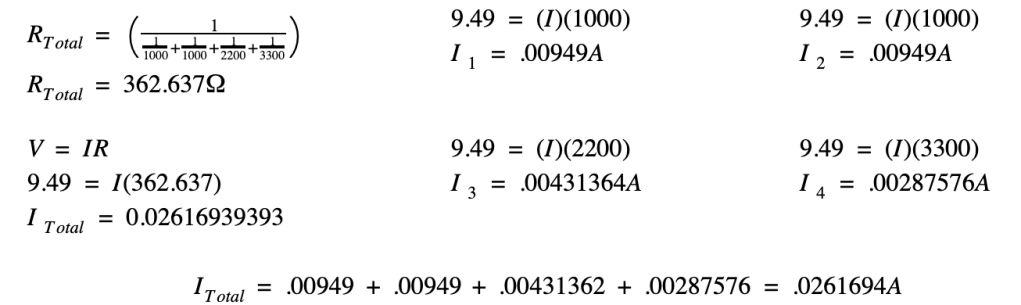

Kirchoff’s Current Law
I(total) = I(1) + I(2) + I(3) + I(4)
Calculated:
Measured:
Troubleshooting
Find troubleshooting notes HERE
